Make: R.D. & D.
Type: LATHES, ENGINE

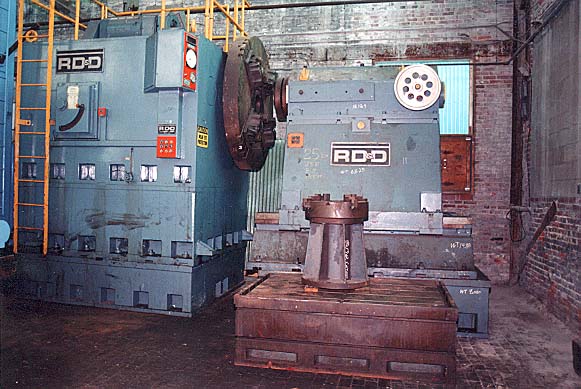

168"/216" RD&D HEAVY DUTY PORTABLE MODULAR LATHE
MODEL: ML216, S/N: 2160577, NEW: 1977
SPECIFICATIONS:
DIAMETER OF T-SLOTTED FACEPLATE ............. 75-1/2"
MAX SWING w/ (1) RISER BLOCK ................ 168"
MAX SWING w/ (2) RISER BLOCKS ............... 216"
HEIGHT OF RISER BLOCKS ...................... 24"
SIZE OF RISER BLOCKS ........................ 88"W x 100"L
TAILSTOCK OCTAGONAL RAM SIZE ................ 22" x 22"
QUILL TRAVEL OF TAILSTOCK ................... 12"
TAILSTOCK MOVEMENT ON BED SECTION ........... 24"
WIDTH ACROSS 3-WAY TAILSTOCK BED ............ 60"
OVERALL LENGTH OF TAILSTOCK BED ............. 100"
INF VARIABLE SPINDLE SPEEDS(3-RANGES) ....... 0-50 RPM
APPROX. WEIGHT CAPACITY BETWEEN CENTERS ..... 200 TONS
SWING MAY BE INCREASED WITH ADDITIONAL RISER BLOCKS
CENTER DISTANCE, VARIABLE
EQUIPPED WITH:
ROLLER BEARING HEADSTOCK
75-1/2" DIA T-SLOTTED FACEPLATE w/(4) HD FACEPLATE JAWS SET
24" DIA 4-JAW CHUCK w/ 12-1/2" BORE MOUNTED ON
25" LENGTH EXTENSION
OCTAGONAL RAM H.D. POWER TAILSTOCK MOUNTED ON
3-WAY BED WITH HARDENED WAYS WITH MANUAL QUILL AND
TAILSTOCK CLAMPING AND HYDRAULIC FEED.
(2) 88" x 100" x 24" HIGH, RISER BLOCKS (1) EACH
FOR HEADSTOCK AND TAILSTOCK.
(1) 49" x 74-1/4" x 24-1/4" HIGH, T-SLOTTED WORK
TABLE WITH (5) T-SLOTS ON TOP AND (2) T-SLOTS
ON SIDE.
BUILT-IN LEVELING SCREWS
OPERATOR'S CONTROL PUSH BUTTON STATIONS MOUNTED ON
HEADSTOCK AND TAILSTOCK.
OPERATOR'S LADDER ON TAILSTOCK
75 H.P. 230 VOLT DC MAIN DRIVE MOTOR WITH GENERAL
ELECTRIC SOLID STATE VARIABLE SPEED DRIVE WITH
CONTROLS.
3/60/460 VOLT INPUT VOLTAGE
TOTAL WEIGHT INCLUDING RISER BLOCKS: 145,600 LBS.
DIMENSIONS OF HEADSTOCK WITH (1) RISER:
96"W x 120"L x 12'6"HIGH
DIMENSIONS OF HEADSTOCK WITH (2) RISERS:
96"W x 120"L x 14'6"HIGH
DIMENSIONS OF TAILSTOCK WITH BED:
88"W x 100"L x 102"HIGH
DIMENSIONS OF TAILSTOCK WITH BED AND (1) RISER:
88"W x 100"L x 126" HIGH
*** LIKE NEW ***
Price: $129,500
