Make: Hansvedt
Type: EDM, RAM TYPE

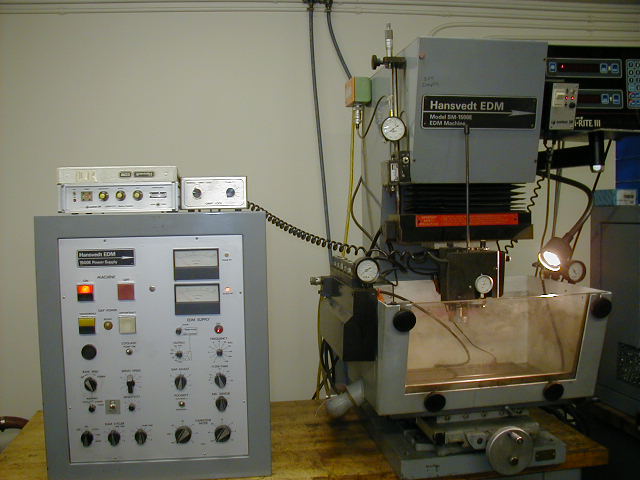

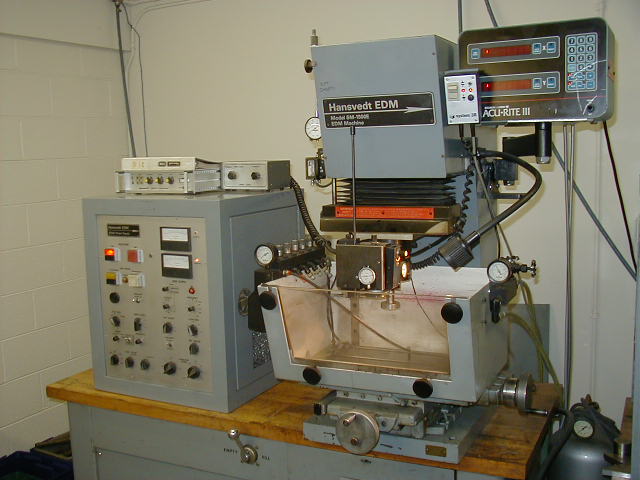

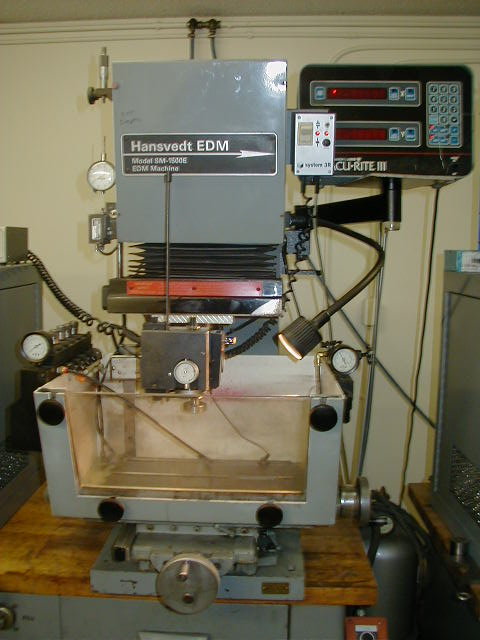

HANSVEDT BENCHTOP MANUAL RAM EDM
MODEL: SM1500E S/N: E0210 NEW: 1982
POSITIONING TABLE TRAVEL:.................... 7" X 10.25"
WORKTABLE SIZE: ................................ 9" X 15"
WORKTANK SIZE:............ 12.25" X 19.875" X 9.75" DEEP
PLATEN TO TABLE (MAX.):............................. 15.5"
RAM TRAVEL:............................................ 6"
PLATEN SIZE...................................... 5" X 13"
MAX ELECTRODE WEIGHT............................. 300 LBS

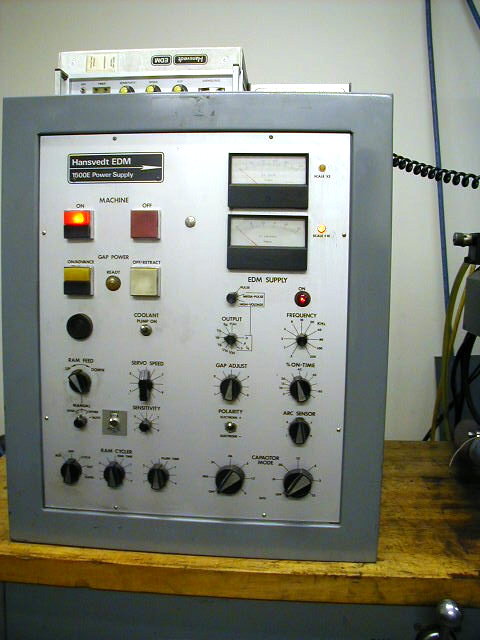

POWER SUPPLY:..................................... 20 AMP
DIELECTRIC WORKTANK:........................ 11.5 GALLONS
DIELECTRIC RESERVOIR:......................... 30 GALLONS
PULSE-FLUSH SPRAY MANIFOLD:..................... 0-50 PSI
VACUUM FLUSH:................................. 0-15 IN HG
POWER REQUIREMENT: 117 VA,60 HZ,30 AMP,1 PHASE,70 PSI AIR
SYSTEM 3R MAGNETIC MOUNTING PLATE & CONTROL BOX (ATT TO RAM)
SYSTEM 3R "ORBI-CUT MINI" UNIT W/ORBI-CUT SERVO CONTROL
(P/N: 3R-8.5 S/N: 002-262)
SYSTEM 3R MANUAL CHUCK FOR "MINI" SYSTEM ELECTRODE HOLDERS
W/ORBI-CUT UNIT)
NOTE: SYSTEM 3R ORBI-CUT UNIT HAS NO MANUAL
DRO (ACU-RITE DISPLAY NEEDS REPAIR, SCALES GOOD)
HIGH INTENSITY WORK LAMP & HANSVEDT MANUAL INCLUDED
** EXCEPTIONAL CONDITION & APPEARANCE **
Price: $12,500
